Arranging windows in space

The confidence labels are the same as in ssh.md.

The short version

• The in-headset Linux desktop is one flat panel: a nested Plasma session, fixed at 1280×800, drawn into a single SteamVR overlay. Windows inside it are arranged by KWin inside that rectangle. They can't leave it.
• Every Steam app gets its own panel. gamescope runs with --virtual-connector-strategy PerAppId, so each distinct app id becomes a separate SteamVR overlay named valve.steam.desktopgame.<appid>.
• To float a Linux app on its own, run it on gamescope's X display (:0) instead of in Plasma, and tag its window with an app id of its own. scripts/panel-on-frame.sh does this:

./scripts/panel-on-frame.sh konsole                    # a terminal, as its own panel
./scripts/panel-on-frame.sh --name notes -- kate '~/notes.md'   # quote ~ so the Frame expands it
./scripts/panel-on-frame.sh org.mozilla.firefox        # a Flatpak
./scripts/panel-on-frame.sh mac-screen                 # the Mac's screen (Remmina/VNC)

• Then place each panel with the SteamVR dashboard's docking controls: Float in World, Move, Size, Toggle Curvature, dock on the left or right controller, View in Theater, and Multitasking View.

How a panel is born (verified 2026-09-25)

gamescope's command line on the Frame includes:

--backend openvr --xwayland-count 2 --virtual-connector-strategy PerAppId
--vr-overlay-key valve.steam.gamepadui.fallback
--vr-app-overlay-key valve.steam.desktopgame
--vr-overlay-physical-width 2.67 --vr-overlay-enable-control-bar
--nested-width 1280 --nested-height 720

gamescope reads each X11 window's STEAM_GAME property as its app id. That's the same property Steam sets on games it launches. On a new id, Steam's SteamVR system UI logs:

[Overlays] Created: valve.steam.desktopgame.7777777
[Overlays] Created: valve.steam.desktopgame.7777777.layer1 … layer7

The test: an xterm on DISPLAY=:0, tagged with xprop -id <win> -f STEAM_GAME 32c -set STEAM_GAME 7777777, produced the overlay above. Two more apps with different ids (konsole, xterm) produced two more overlays, and all three were listed together in the root property GAMESCOPE_FOCUSABLE_APPS. Not yet checked by eye: how the new panels look in the headset and how they handle input.

Untagged windows on :0 get app id 0 and share the default panel. Plasma itself (kwin_wayland, pid in GAMESCOPE_FOCUSABLE_WINDOWS) is one of those.

What panel-on-frame.sh does

1. Sets DISPLAY=:0, unsets WAYLAND_DISPLAY, and forces X11 in the toolkits (QT_QPA_PLATFORM=xcb, GDK_BACKEND=x11, SDL_VIDEODRIVER=x11, MOZ_ENABLE_WAYLAND=0). A Wayland-only app would connect to gamescope's own Wayland socket and not get tagged.
2. Starts the app detached (setsid nohup), so it outlives SSH.
3. Diffs the root window's children before and after, and sets STEAM_GAME on each new mapped top-level window. It keeps watching about 3s after the first window (for splash screens), up to 20s in total (for slow Flatpaks). It gives up early if the app exits before showing a window.
4. The id comes from --id, or is derived from --name/the command in the range 2,000,000,000–2,000,999,999, far above real Steam app ids. The same label always gives the same id.

Limits:

• Single-instance apps (Remmina, most KDE apps with a running copy in Plasma) hand the request to the existing process, so the window opens wherever that process lives. Close the app in Plasma first.
• A window the app opens later (a dialog, a second window) isn't tagged, so it lands on the default panel. Tag it by hand: ssh frame 'DISPLAY=:0 xprop -id <win> -f STEAM_GAME 32c -set STEAM_GAME <id>' (find <win> with DISPLAY=:0 xwininfo -root -children).
• The script tags any new window on :0 during its watch window, so a Steam popup that opens in those few seconds would join the panel too. For the same reason, run one panel-on-frame.sh at a time. If a stray window is tagged first, the script can report success while the app's own window stays on the default panel; check in the headset.
• Each panel renders at gamescope's nested size (1280×720), not the Plasma desktop's 1280×800.
• Steam treats the tagged id as "the current game": it applies a generic controller config and logs Failed to get app info for the made-up id. So far this hasn't caused anything worse.

Placing panels: the SteamVR dashboard (inferred from SteamVR's UI code)

The Frame's SteamVR dashboard (/opt/steamvr/resources/webinterface/dashboard/) wraps each overlay in a frame with a dock location: Dashboard, World, Theater, LeftController, RightController. The strings and handlers are there (dashboard_english.json, systemui.js):

Control	What it does
Float in World	Only shown while the panel is docked on the dashboard. Detaches it into the room, where it stays after the dashboard closes.
Move / grab handle	Push, pull and drag the panel. Grab Handle Acceleration in SteamVR settings speeds up push and pull.
Size	Resize the floating panel.
Toggle Curvature	Flat vs curved.
Dock on Left/Right Controller	Attach to a controller, like a wrist screen.
Dock on Dashboard / Return to Dashboard	Put it back.
View in Theater / Show/Hide Theater Screen	Shows the panel as a large theater screen.
Multitasking View	Shows every open panel together (only if VRHTML.BSupportsMultitaskingView()).
More Options (…)	Where the less common docking actions live.

Still to check in the headset: where exactly each control appears, whether floating positions survive a panel closing and reopening, and whether there's a limit on the number of floating panels.

Other routes

• Just the desktop somewhere else: float the Plasma panel itself. No script needed.
• Inside the desktop panel: KWin tiling (Meta+arrow keys with a Bluetooth keyboard) or virtual desktops arrange windows within the 1280×800 rectangle.
• Optional overlay tools: Desktop+, OVR Toolkit and similar software are separate from Frame Control. Public reports describe some Proton support; Windows-only does not by itself prove a Frame app cannot run. Local status and sources are in VR utilities.
• Our performance HUD: Home → VR comfort and performance → Open HUD in headset creates its own gamescope panel using built-in tools. It needs no third-party overlay app. Metrics and verification.

Frame Control's panel switcher

Verified 2026-09-28, SteamOS 0.4.1, BUILD_ID 20260925.6191901, SteamVR 2.18.1: Tools → Panel switcher lists SteamVR's open main panels, including panels that are currently hidden. Show asks SteamVR to bring one forward. Open in headset opens the same switcher as its own panel; choose it again from Steam's dashboard after switching away. Refresh updates the list. This is a list, not thumbnail Exposé.

This is our own Python/HTML implementation (ui/frame_panels.py), using the Frame's shipped vrcmd OpenVR client and gamescope. The headset page uses Chromium (Chromium XR when present, then system Chromium, then the existing Chromium Flatpak). No XSOverlay, OVR Toolkit, WayVR or other overlay application is needed. This dependency boundary also applies to future layout and panel persistence work: platform APIs and bundled libraries are fine; another app must not implement the feature for us.

The companion runs the helper over SSH. Opening it in the headset installs a copy under ~/.local/share/frame-control/panels/ and starts a loopback HTTP server and an isolated Chromium profile. There is no startup service or global setting change. Close the switcher to stop its server and browser. Other Chromium profiles, Steam and SteamVR are left alone. If the window or runtime closes, use Open in headset again.

The page carries a random, per-process access key in its URL fragment, removes it from the address bar, keeps it in tab session storage for page reloads, and sends it in a header. Panel lists and actions need that key; Host and Origin checks reject other sites. The key permits only listing panels, requesting focus and closing this switcher. Like Mac viewer launch tickets, it is initially readable by another process running as the same Frame user. Panel titles are rendered as text, never HTML. The companion retains its existing request guards. No Mac capture credentials cross this API.

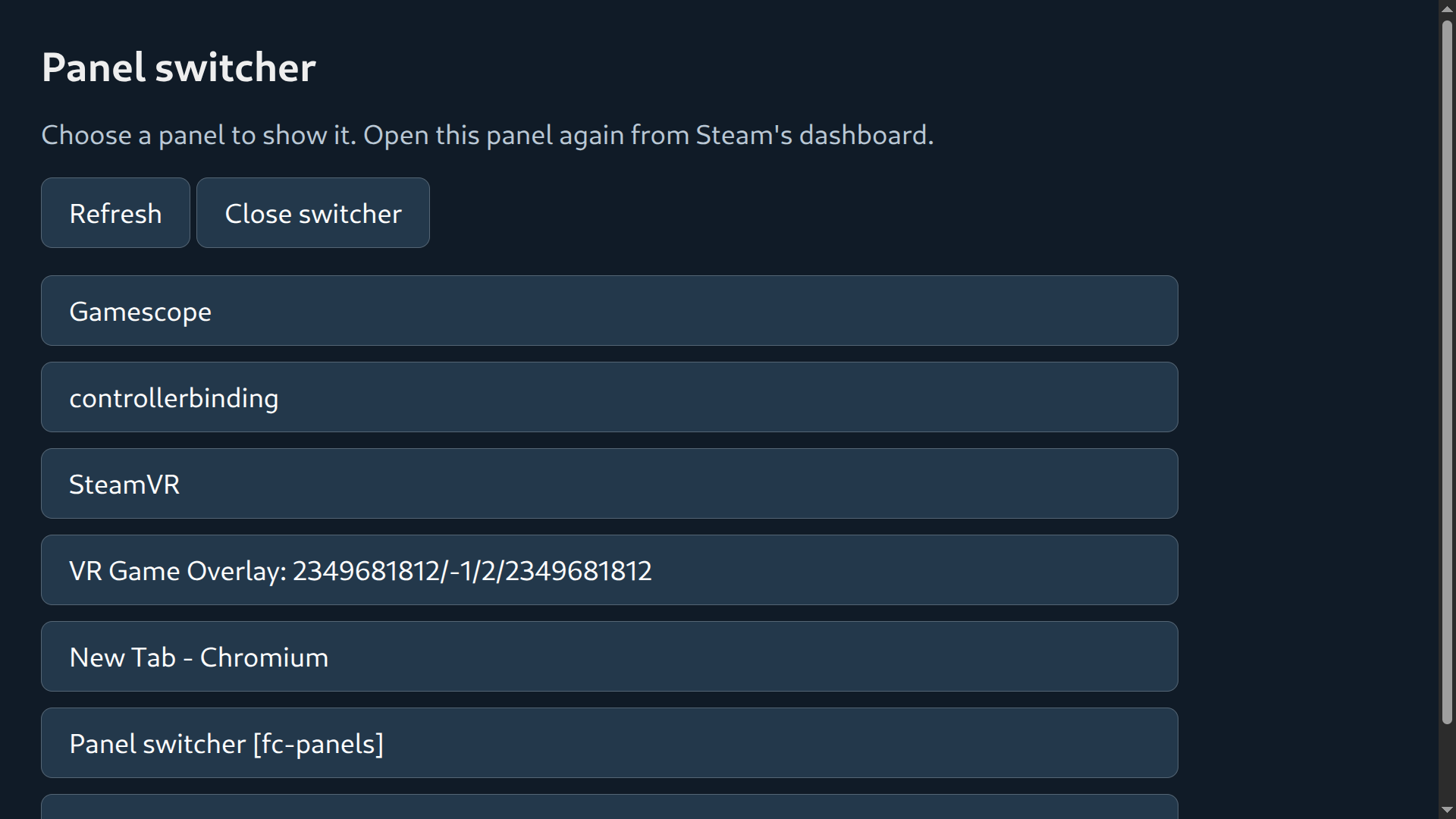

Verified: the real headset page rendered its panel list (image above), its HTTP focus request changed GAMESCOPE_FOCUSED_APP to 2000999030, a request without the key returned HTTP 403, and Close stopped the helper and its browser. Opening an already running switcher requests its focus rather than creating a second one. The companion uses the same list/focus helper. Unverified: laser selection while wearing the headset, physical placement, and non-XR Chromium. The API reports that focus was requested: another action can take focus before we observe the result. Closed panels are rejected after re-enumeration.

Shared-device recheck, 2026-09-29

Verified: the follow-up's atomic mkdir /tmp/frame-test.lock attempts failed because another thread held the lock. The existing lock was left alone; no applications were installed, launched or stopped in this follow-up. The last read-only battery check showed 62%, charging. The 180 Python and 8 website tests passed again locally.

Unverified in this follow-up: the prepared browser-button test (Refresh, selection, reload and Close) and repeated OpenXR transition could not run under the shared lock. The device results elsewhere in this page are the earlier 2026-09-28 observations, not results from this blocked recheck. In particular, HTTP focus is not evidence of worn-headset laser input. Follow the shared-device test procedure for the next run.

Saved spatial layouts: blocked on the current panel route

Verified 2026-09-28, same build, using a temporary xterm panel with STEAM_GAME=2000999031 and FnTable:IVROverlay_028 from /opt/steamvr/bin/linuxarm64/libopenvr_api.so:

OpenVR call	Result
FindOverlay("valve.steam.desktopgame.2000999031")	Success
GetOverlayWidthInMeters	Success, 2.67 m
SetOverlayWidthInMeters (same width)	Success
GetOverlayTransformType	Success, type 5 (VROverlayTransform_DashboardTab)
GetOverlayTransformAbsolute	18 (WrongTransformType)
SetOverlayTransformAbsolute (identity rotation, 1.2 m up, 1.5 m forward)	12 (PermissionDenied); type remained 5

The public interface names type 5 DashboardTab; SteamVR's dashboard code places these panels through its scene graph. It owns the frame/docking transforms. A successful width setter does not grant permission to restore the position. vrcmd --dock-overlay world <key> dispatched a docking request but the dashboard logged Failed to get SGTransform in setInitialTransformForLocation. Invalid transform ID. This does not establish working world placement.

Inferred: saving X11 pixel rectangles or Mac window IDs would not restore this spatial arrangement. Mac window IDs also change when an application reopens; viewer tickets and reconnect keys must not go into a layout file. The base Mac stream reconnects after a network break, but that is different from recreating windows and their room positions after a reboot.

There is consequently no Save/Restore control yet. A durable layout needs a working transform restore path, stable source identity, and a fresh capture permission/ticket flow. The tested gamescope-owned overlay route denies that transform operation. A future Frame Control-owned overlay renderer, or a supported platform API for dashboard frame transforms, needs its own device proof before building layout UI. This is a blocker for the current approach, not a claim that all possible implementations are impossible. Reboot recovery was not tested: the shared headset was not rebooted.

Panels during an immersive session

Verified 2026-09-28, same build: our Chromium switcher panel remained in OpenVR's overlay list before, during and after the Frame's shipped helloxr -g Vulkan sample. During the test vrcmd --stats identified system.generated.openxr.helloxr.helloxr, with 242 frame submissions. The test ended only its own sample process; no SteamVR, Steam, power or global settings were changed. The switcher was still selectable afterwards.

This proves survival of that panel across an OpenXR scene session, not that it stayed visibly composited over the scene: OpenVR reported it not_visible before, during and after. Verified: calling ShowOverlay on our gamescope-owned switcher overlay returns 12 (PermissionDenied). A helper cannot force that panel visible using the public overlay call. Use the switcher/dashboard to request access to it; we do not fight the runtime with a repeated force-focus loop.

Verified in a second controlled run: a live H.264 test-pattern stream from this checkout's Mac helper, through its own SSH tunnel and a temporary Chromium profile, survived the same OpenXR sample (257 scene-frame submissions). Its panel 2000999032 changed from visible before launch to not_visible during and after the scene. The Mac helper still reported the same test stream; captured frames increased from 35 to 232, with 29.5 decoded/drawn fps afterwards. The test did not capture personal Mac windows or inject Mac input. The sample, viewer, temporary profile, tunnel and Mac helper were cleaned up. This proves stream survival, and also shows why it must not be advertised as always visible.

Unverified: persistent visible placement while playing a Steam-launched VR game, Plasma desktop and real Mac-window behavior during that launch, and worn headset input. Other threads were launching games and changing the runtime on the shared device, so those transitions were not treated as controlled evidence. A runtime/X-server restart can destroy the viewer windows; a network reconnect cannot recreate them. No “always visible during games” guarantee is shipped.

Keyboard passthrough feasibility

Verified 2026-09-28, same build, using FnTable:IVRTrackedCamera_006: HasCamera(0) returned success and true. GetCameraFrameSize returned 100 (OperationFailed), with zero dimensions, for all three public frame types (distorted, undistorted and maximum-undistorted), including after acquiring the video service. Acquisition returned success and a handle; release returned 101 (InvalidHandle). The probe shut down its OpenVR client afterwards. No camera frames were captured and no camera settings were changed.

Documented: the public OpenVR camera interface provides camera frame sizes, intrinsics, projections and streaming handles; these are prerequisites for a spatially aligned camera cutout. See Valve's OpenVR C API.

Inferred: camera presence alone does not establish access to camera pixels. The failed frame-size path blocks a keyboard cutout in our current panel implementation. We have not established a keyboard detector or a calibrated camera-to-panel mapping. Built-in full-room passthrough is not proof of a public, selectively masked camera stream. No keyboard cutout is offered, and no third-party camera/overlay app is substituted for it.

Frame Control's media theatre

The owned media player can show its video or stereo image on a larger, head-relative screen with its own dark surround. Verified remotely 2026-09-28, SteamOS 0.4.1 / BUILD_ID 20260925.6191901: screen, eye isolation, surround and cleanup. It does not alter panel docking or global settings. Its Overlay RGBA rendering hook is available to stream producers; applying SteamVR theatre docking to existing Mac/PC panels is still unverified here.
