Movies, stereo photos and splats

Frame Control has its own Frame-side OpenVR player. It uses SteamOS's ffmpeg and V4L2 hardware decoder, Python and SteamVR. No separate player or viewer is required. Chromium and immersive WebXR are not in this playback path.

Use it

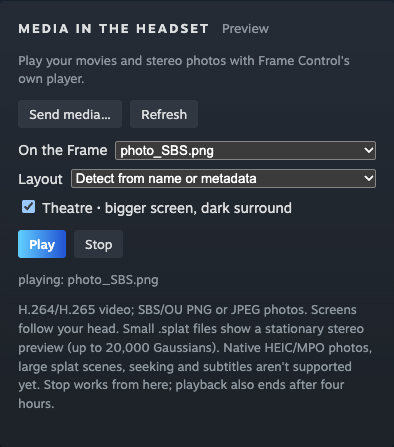

In Tools → Media in the headset, send a file, choose its layout and press Play. Theatre gives it a larger screen and an 85% black surround. Stop removes both. Refresh reads the library and the player's state. The screen follows your head; it isn't a saved world-space panel.

The command-line route uses the same player:

scripts/push-vr-video.sh --launch --theatre ~/Movies/film_SBS.mp4
scripts/push-vr-video.sh --launch --layout ou ~/Pictures/stereo.png
scripts/push-vr-video.sh --launch capture.splat
scripts/push-vr-video.sh --list
scripts/push-vr-video.sh --stop

Uploads live in ~/Videos/FrameControl/<id>/ on the Frame. Each upload gets its own directory, so sending another file with the same name doesn't replace it. The UI's existing upload limit is 8 GiB. Transfers use the app's rsync/scp path; resumable large uploads are not implemented here yet. Existing ~/Videos/VR files and Proton prefixes are left alone. The script no longer launches DeoVR, links a Proton prefix, or accepts directories.

Media	Supported preview
Movies	H.264 / H.265, mono or left-first SBS / top-first OU; audio through the Frame's PulseAudio-compatible server
Stereo photos	PNG / JPEG containing both eyes, SBS or OU
Gaussian splats	Common 32-byte .splat records, 1–20,000 Gaussians; a stationary stereo preview

Auto layout reads delimited filename tags: _SBS, _HSBS, _LR, _OU, _TB, _HOU, _HTB, _FSBS, _FOU, _FTB. SBS/OU without F means half-resolution packing. Full packing preserves each eye's original aspect. It also accepts FFmpeg's stereo_mode metadata (left_right, top_bottom, mono); left/right and top/bottom metadata are treated as full packing. Choose an explicit layout if that assumption doesn't match the file. Unknown or conflicting tags ask for a choice, rather than silently flattening stereo. The explicit selector always wins. Layout is not guessed from resolution.

What was verified

Verified remotely, 2026-09-28: SteamOS 0.4.1, BUILD_ID 20260925.6191901, SteamVR 2.18.1. Nobody wore the headset for these checks. All test media were generated by us. No paid content or DRM was involved.

• Stock ffmpeg h264_v4l2m2m decoded 150 frames of our 1920×1080 H.264 test in 0.128 s (decode only); converting all frames to RGBA took 0.242 s.
• Our ffmpeg → Python → OpenVR path submitted all 150 frames and exited 0. The 1280×720 prototype took 4.775 s; the full 1920×1080 player took 4.618 s. These are wall times, not in-headset frame-rate measurements. Finishing a 5 s clip early showed those probes weren't paced, so the final player paces output at 30 fps: all 150 frames then completed in 5.025 s.
• The H.265 hardware decoder also completed the generated 1080p clip (60 frames, exit 0); this is a short compatibility check, not a 4K/8K benchmark.

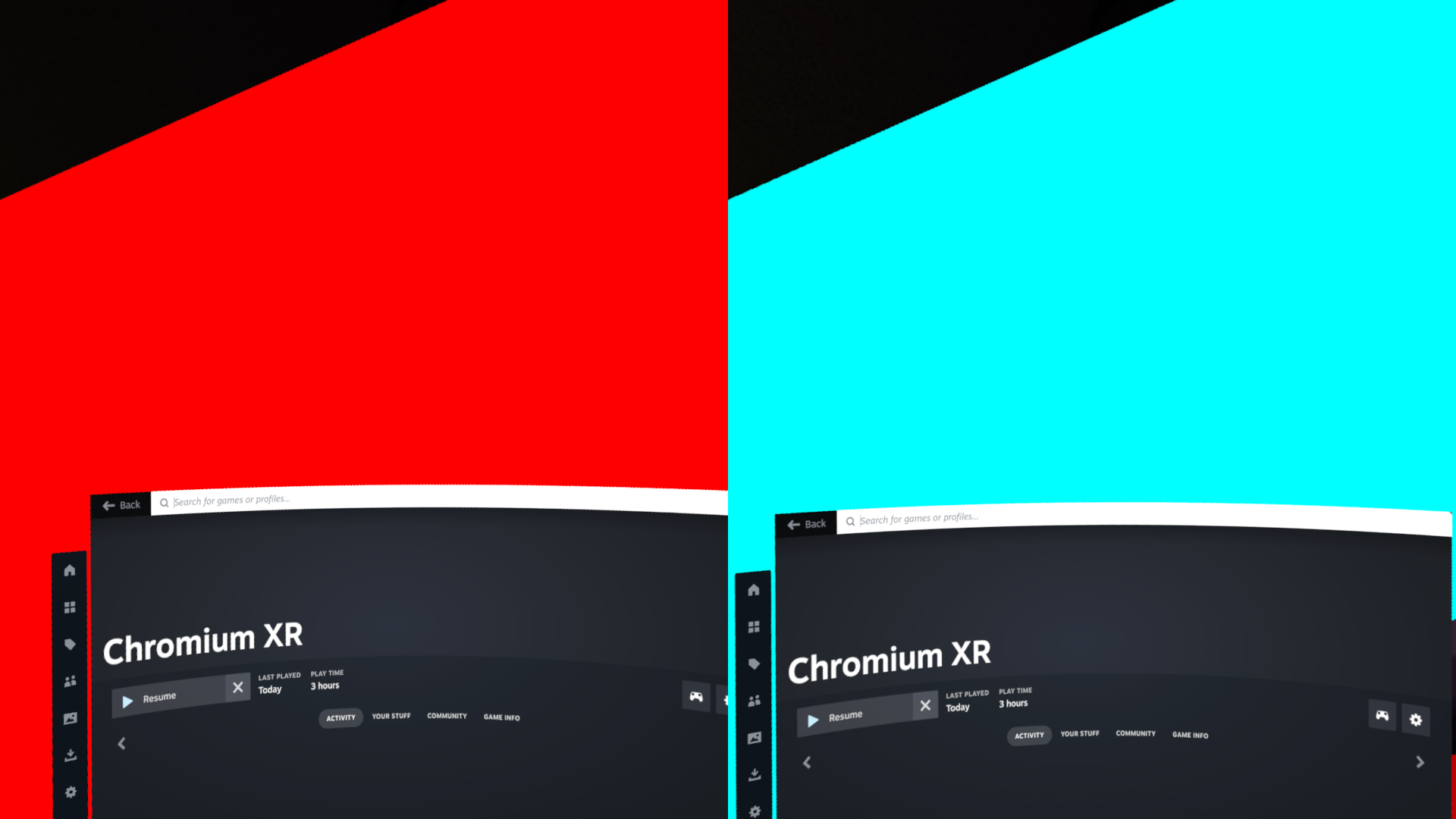

• Our actual player, launched through Frame Control's media API, displayed SBS and OU photos with red only in the left-eye capture and cyan only in the right. OpenVR's SideBySide_Parallel flag separates the eyes; we rearrange OU rows ourselves.

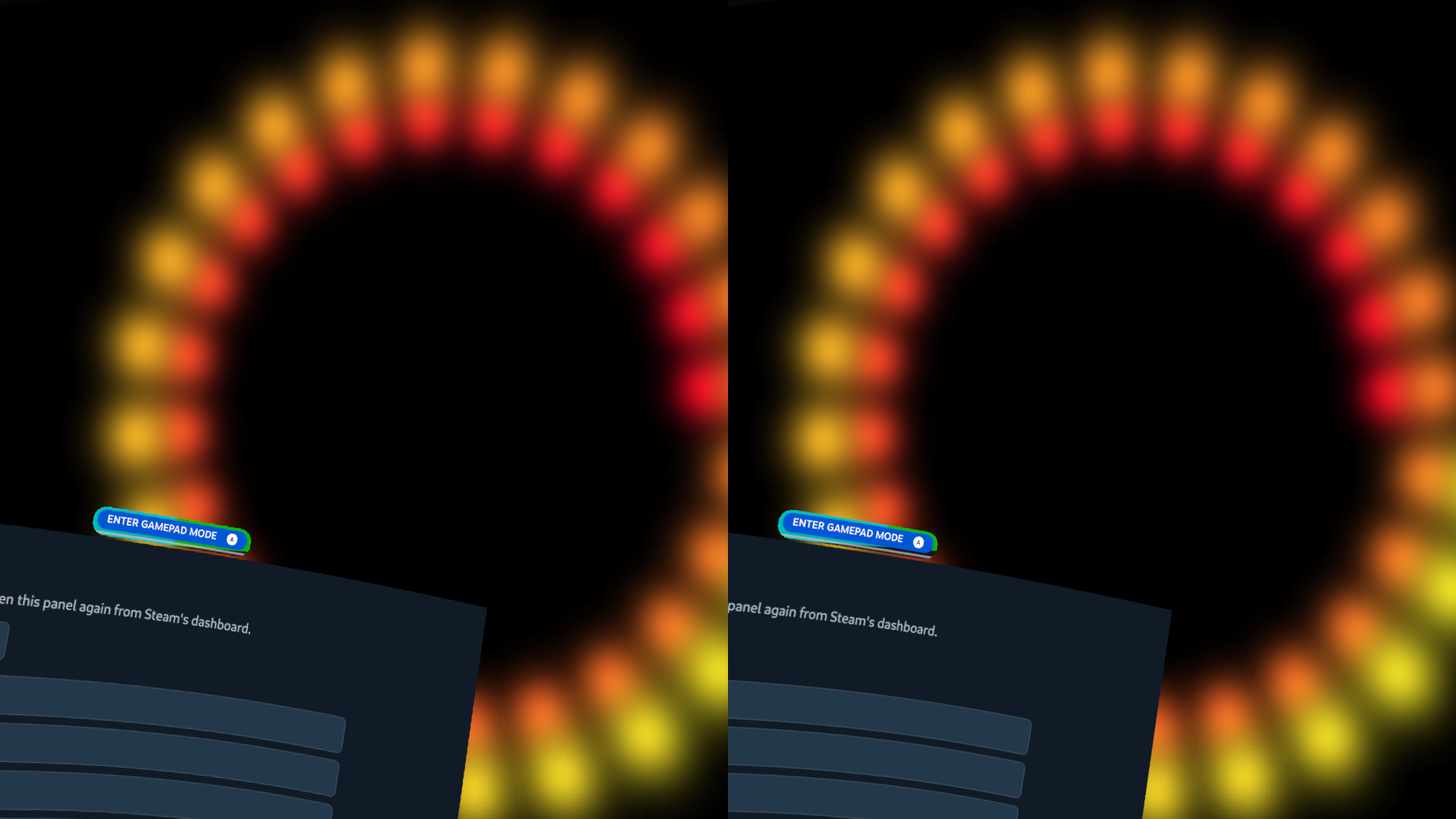

• A generated 48-Gaussian .splat rendered in our own CPU renderer and appeared in both eyes with separate perspective projections.
• Theatre's owned dark surround and screen appeared in captures. Steam's dashboard remained available over them. Stop removed the owned overlays and ended the dedicated user service. No global SteamVR setting was changed.
• A generated H.264/AAC clip reached the Pulse audio output and completed all 100 video frames with exit 0. This proves the output path, not audible quality or lip sync.

Verified end to end, 2026-09-29 (same build; headset unworn): uploads through the HTTP API, the web UI and scripts/push-vr-video.sh, all played by the owned player. Our generated test files:

Case	Result
H.264 half-SBS 1920×1080 with AAC, theatre	240/240 frames in 8.09 s; audio stream "Frame Control Media" in PulseAudio
H.265 half-OU 1920×1080	180/180 frames in 6.03 s; red left eye, cyan right
H.264 full-SBS 3840×1080, stereo_mode=left_right only	Detected from metadata; 150/150 frames in 5.03 s
H.264 1280×720, explicit 2D	150/150 frames in 5.02 s
SBS PNG, OU JPEG (theatre)	Correct eye in each capture
3,000-Gaussian .splat	Rendered in about 5 s, then held until Stop
2D file on Auto, _SBS_OU file, HEIC, VP9	Refused with the documented message
Second Play while one runs	Refused: "Stop the current media…"

Stop always left the unit inactive, and no player process remained.

Standby (verified): an unworn Frame turns its displays off a few seconds after it wakes. SetOverlayRaw then returns RequestFailed (23). The first run's movie died there. The player now drops frames while the headset is in standby, keeps the audio and its clock going, and resumes the picture when the headset wakes. The 8 s movie above dropped 40 frames and finished. Stills and the theatre surround are re-sent after waking. Five minutes without an accepted frame is reported as an error. Headset-view captures taken during standby show a flat dark frame, not our screen.

Verified failed route: GStreamer 1.24.2's playbin selected v4l2h264dec, delivered the first RGBA sample and then segfaulted (exit 139) in the basic appsink probe and the OpenVR probe. We do not ship that route. The ffmpeg path above completed instead.

Limits and blockers

• Not verified: worn-headset comfort, sound quality/lip sync, long movies, 4K/8K decode, HDR, controller interaction or behaviour on other OS builds. Output is bounded to 1920×1080 packed pixels before OU rearrangement.
• Not implemented: pause, seeking, subtitles, playlists, right-eye-first layouts, non-square pixel correction, VR180/360 projection and fisheye. This preview is a flat stereo screen, not a dome player.
• Native spatial-photo blocker: HEIC/HEIF/AVIF/MPO stereo-container extraction isn't implemented in our viewer. We reject these rather than displaying one image and calling it spatial. Export both eyes to PNG/JPEG first. This is a current implementation gap, not a claim that the Frame cannot support these containers.
• Large/immersive splat blocker: the owned CPU rasterizer projects 3D covariance into each eye and alpha-composites Gaussians, but renders a fixed view at 320×240 per eye. It caps each Gaussian footprint at 32 pixels and normalizes the scene to a two-metre box. Large scenes, PLY/SPZ, live head-position parallax and navigation need a GPU scene renderer; this version rejects files above 20,000 records. It is a stereo preview, not an immersive walk-through.
• A single player can run at a time. It stops at EOF, on Stop, or after four hours in any case, so longer movies are cut off. Still images remain until Stop or that timeout. There is no delete action yet: remove old uploads from ~/Videos/FrameControl/ over SSH. The log is ~/.local/share/frame-control/media/player.log on the Frame.
• Panel/stream theatre remains outside this media slice: SteamVR's vrcmd --dock-overlay accepts theater, but docking an existing panel and its dimming behaviour were not verified here. The shared headset had workspace and stream tests active. We did not reposition their panels. Integration with #22 and #31 can use the owned rendering hook below; no second stream/window manager is introduced.

Integration hook

POST /api/upload with X-Mode: media and X-Filename sends a file and returns its id. POST /api/media accepts:

{"action":"play","id":"<32 hex characters>/film_SBS.mp4","layout":"auto","theatre":true}

Other actions are list, status, stop. These use the normal X-Frame-UI guard. Play reports starting, not a claim that frames reached the headset; read status for playing, ended, stopped or error. The own-code files are copied to ~/.local/share/frame-control/media/ and run in the frame-control-media.service systemd user unit. Stop affects only that unit, including its decoder child.

For a Frame-side stream producer, frame_media_player.Overlay exposes create(key, width, distance, stereo=False, aspect=1, order=1), pixels(handle, rgba, width, height) and close(). Use an owned unique key, pass interleaved RGBA bytes (left/right halves for stereo) and always close in finally. create uses a head-relative transform; it does not move another app's panel. The player demonstrates a separate black surround overlay. frame_media.stereo_pixels converts OU to SBS. This is the narrow rendering hook for stream/workspace work; it doesn't capture or manage a Mac/PC stream.

Optional separate app

You can independently install DeoVR Video Player (free Steam app 837380) if you prefer its VR180/360 features. Earlier tests on SteamOS 0.3.0, build 20260922.6101926 (2026-09-25), verified its OpenVR initialization and 8K H.265 streamed VR180 decoding under Proton. Frame Control's media features neither install nor launch it, and do not depend on it. Its behaviour and file-naming conventions are not evidence about our player.
