Frame Control for AI agents

Documented interface: Frame Control's own stdlib Python MCP adapter wraps its loopback HTTP API. No API key, hosted service, model SDK or third-party helper app is needed. The assistant is our HTML/Python implementation hosted in the platform Chromium browser. Its optional LLM endpoint is user configuration. Installing other apps is an optional management action, never a prerequisite.

Connect an MCP client

The default MCP command starts a private HTTP backend on a free loopback port, with a fresh local access key. It stops that backend when the MCP client closes stdin or sends SIGTERM. It uses its own SSH control socket, so closing it does not close the desktop app's connection. No manually started server is needed.

Add this stdio server to your MCP client (use absolute paths):

{
  "mcpServers": {
    "frame-control": {
      "command": "python3",
      "args": ["/absolute/path/frame-control/ui/frame_mcp.py"]
    }
  }
}

For Codex, the equivalent registration is:

codex mcp add frame-control -- python3 /absolute/path/frame-control/ui/frame_mcp.py

New agent sessions load the entry. An already running session may need its MCP connections reloaded; registration does not retroactively add tools to its initial tool inventory. Keep the checkout at that path while it is registered. Use codex mcp remove frame-control to remove only this registration.

To reuse a running server instead, pass --url http://127.0.0.1:47810. The desktop app uses a random port; use that port with --url, or run the checkout server above. If the HTTP server uses FRAME_UI_KEY, pass the same value in the MCP process environment. This is local access control, not an LLM API key. The adapter only accepts loopback HTTP servers, refuses redirects and ignores environment proxies. Stdout contains newline-delimited JSON-RPC only. It supports MCP initialization, ping, tool listing and tool calls; no sampling, resources, prompts or streaming transport.

Tool	Arguments	Effect
computer_state	none	Read-only gamescope window IDs/focus and bounded AT-SPI tree; reports incomplete observations
status	none	Battery, services, installed games and Flatpaks
screenshot	view: headset (default) or desktop	Returns PNG image content to the MCP client
job	id	Background install status; poll until done, inspect error
launch	appid	Launch an installed Steam app
install / uninstall	id	Install from Flathub / remove a user Flatpak
send_text	text	Frame desktop clipboard; desktop must be open
send_file	path	File on the HTTP server computer, up to 16 MiB, copied to Frame ~/Downloads
panel	id	Launch an installed Flatpak as a panel using the existing launcher
power	action: suspend, reboot, poweroff	Open a terminal for the user to enter the sudo password
keep_awake	action: on, off, status	Optional keep-awake script interface

Only install free software with its developer's consent. There is no purchase, entitlement bypass or arbitrary shell tool. install returns a background job ID; it does not claim the installation has finished. APK and sideloaded title installs remain in the main UI for now.

Approval is a separate human action

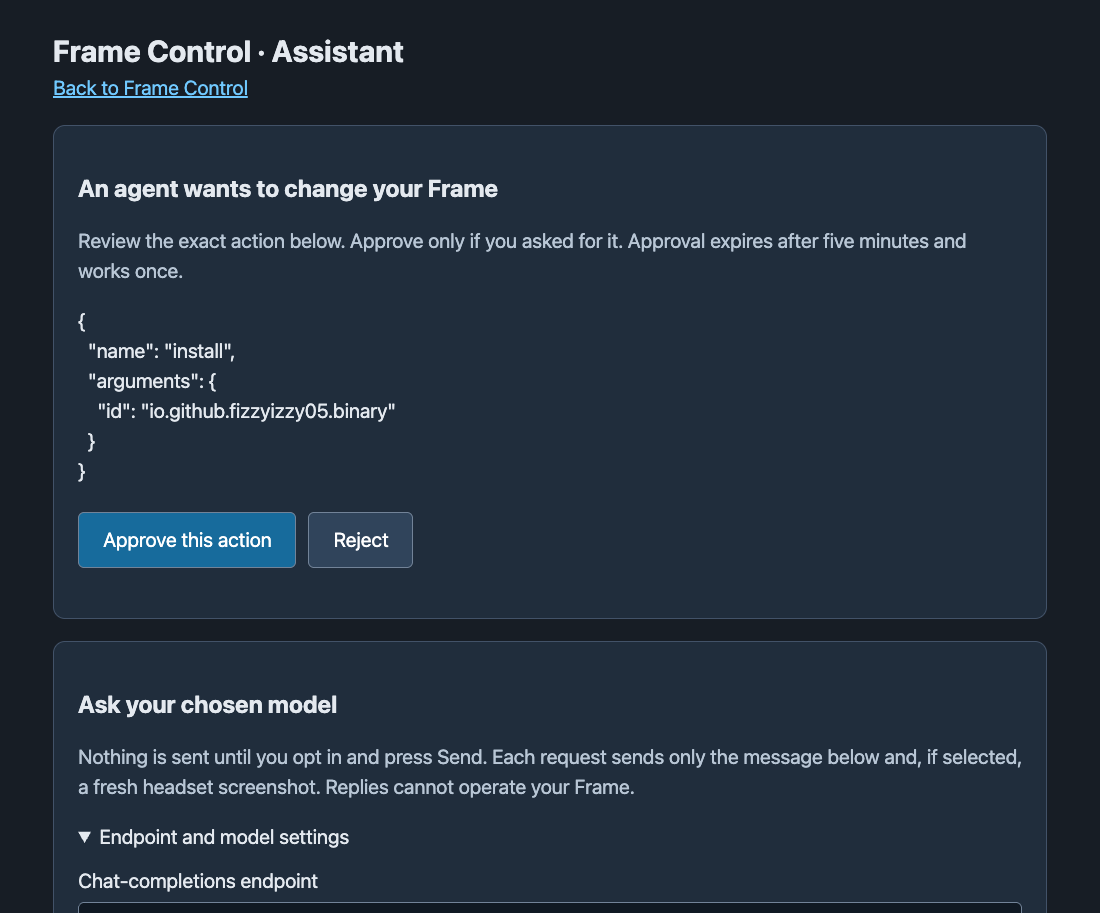

Every mutation first returns an approvalUrl, exact action and confirmation token. Ask the user to open that URL and choose Approve this action or Reject. Then repeat the same tool and arguments with the token in confirmation. The server refuses execution before approval, changed arguments, expired tokens and reuse. A file approval binds the content hash as well as the path. Approvals last five minutes and disappear when the HTTP server restarts. A failed execution also consumes the approval; review a fresh request to retry. The panel does not execute an action merely because it was approved.

MCP has no approval tool. This is protection against accidental model tool calls, not a sandbox against a client with independent shell/HTTP access to your computer. Grant the MCP client only the access you intend. Status, captures and computer-state observations are returned directly to that client, which may forward them to its configured model. The assistant's separate opt-in does not govern an external MCP client.

Power still requires the existing password prompt in a local terminal. MCP never receives passwords. Power via FRAME_LOCAL=1 is unsupported: use the main UI. The panel launcher and keep-awake adapter require zsh on the computer.

PR #16 owns scripts/keep-awake.sh on|off|status. This branch does not copy or change it. Until that script is present, the tool reports it unavailable. Keep-awake is never automatic: on changes the shared idle timers; explicitly approve off to restore them after work. It is not a per-agent lease; coordinate with other users. No changes are made to the analytics/update interfaces in PR #17. Prompts, keys, model replies, screenshots and approval payloads are not sent to analytics.

Assistant panel

Open Tools → Open assistant, or http://127.0.0.1:47810/assistant. To put the same page in the headset, with the HTTP server still running:

python3 scripts/assistant-on-frame.py --port 47810

This starts an SSH reverse forward bound to Frame loopback (port 47812 by default), then a dedicated Chromium profile tagged as a SteamVR panel. Keep the command running. Ctrl-C closes this browser profile and the tunnel; it leaves other Chromium windows and the existing HTTP server alone. A failed cleanup prints the temporary profile path so it can be removed when the Frame returns. Use --frame-port if the default is busy. Chromium must already be available as org.chromium.Chromium; the launcher never installs anything automatically. Place the panel with SteamVR's normal docking controls.

Enter your full chat-completions endpoint, model name and optional key. An OpenAI-compatible local server works without a key; no OpenAI account is required. HTTP is allowed only on loopback; other endpoints require HTTPS. Loopback refers to the computer running the HTTP server, even in the headset. Endpoints with embedded credentials, query strings or redirects are refused.

Check the message consent box and press Send message. Screenshot context is a separate unchecked box and sends one fresh capture with that request. Both boxes reset after sending, and changing endpoint/model revokes consent. Nothing is sent when opening the page or entering configuration. There is no model list fetch, saved history, automatic screenshot capture or assistant telemetry. Each send is independent: previous messages and replies are not included.

Configuration, credentials and chat remain in page memory; close/reload the page or choose Clear everything to clear them. A request already sent cannot be recalled. Only the chosen endpoint gets the request; proxy environment variables and redirects are disabled. Its privacy and retention policy still applies. Replies are plain text and cannot call tools or operate the Frame. A model must support image inputs to accept screenshot context.

Evidence and limits

Verified 2026-09-28, SteamOS 0.4.1, BUILD_ID 20260925.6191901: loopback HTTP status through an SSH reverse tunnel; platform Chromium created a separate SteamVR panel (confirmed in GAMESCOPE_FOCUSABLE_APPS); headset capture returned a PNG. These checks preceded the UI implementation. No power or global settings were changed.

Inferred: visual comfort and controller keyboard usability while wearing the headset; panel creation in gamescope alone does not establish these. Windows/Linux launcher support, live third-party model endpoints, installs, uninstalls, power and keep-awake changes are not covered by that feasibility check. See the PR for the final unit and end-to-end results.

Verified end to end on the same Frame/build (2026-09-28): a stdio MCP client initialized, read status, retrieved a headset PNG, and transferred a test file only after approval through the Chromium page. Remote file bytes matched; reusing the confirmation was rejected. The actual headset Chromium page sent text and then separately opted-in image context to a local test endpoint and displayed its replies. Without consent there were zero endpoint requests. The test endpoint returned canned replies: model inference and a live external provider remain unverified. The launcher’s Ctrl-C cleanup was checked; profiles, SSH tunnels and the test file were removed. No installs, removals, launches of user games, power operations or keep-awake changes were performed.

Verified locally: unit coverage includes the stdio subprocess, approval binding/expiry/replay/concurrency, file-change rejection, and a real local HTTP endpoint for opt-in, text/image payloads and redirect refusal. Fake-Frame regressions are in tests/e2e/test_agents.py; local Docker execution was blocked because the Docker daemon was unavailable. The ARM64 fake-Frame CI job passed on this branch (run 36421345682).

Verified on the same Frame/build: both Ctrl-C and SIGTERM close the dedicated browser profile and SSH tunnel and remove the profile and panel log.

Verified end to end on the same Frame/build (2026-09-29), with mutations: a stdio MCP client started ui/frame_mcp.py in its default mode (private backend, no API key, no prestarted server) and a human approved or rejected each change in the approval page in a real Chrome window:

Tool	Result on the Frame
send_file	Approved; the file arrived in ~/Downloads with identical contents
install	Approved; io.github.fizzyizzy05.binary job finished in about 35 s

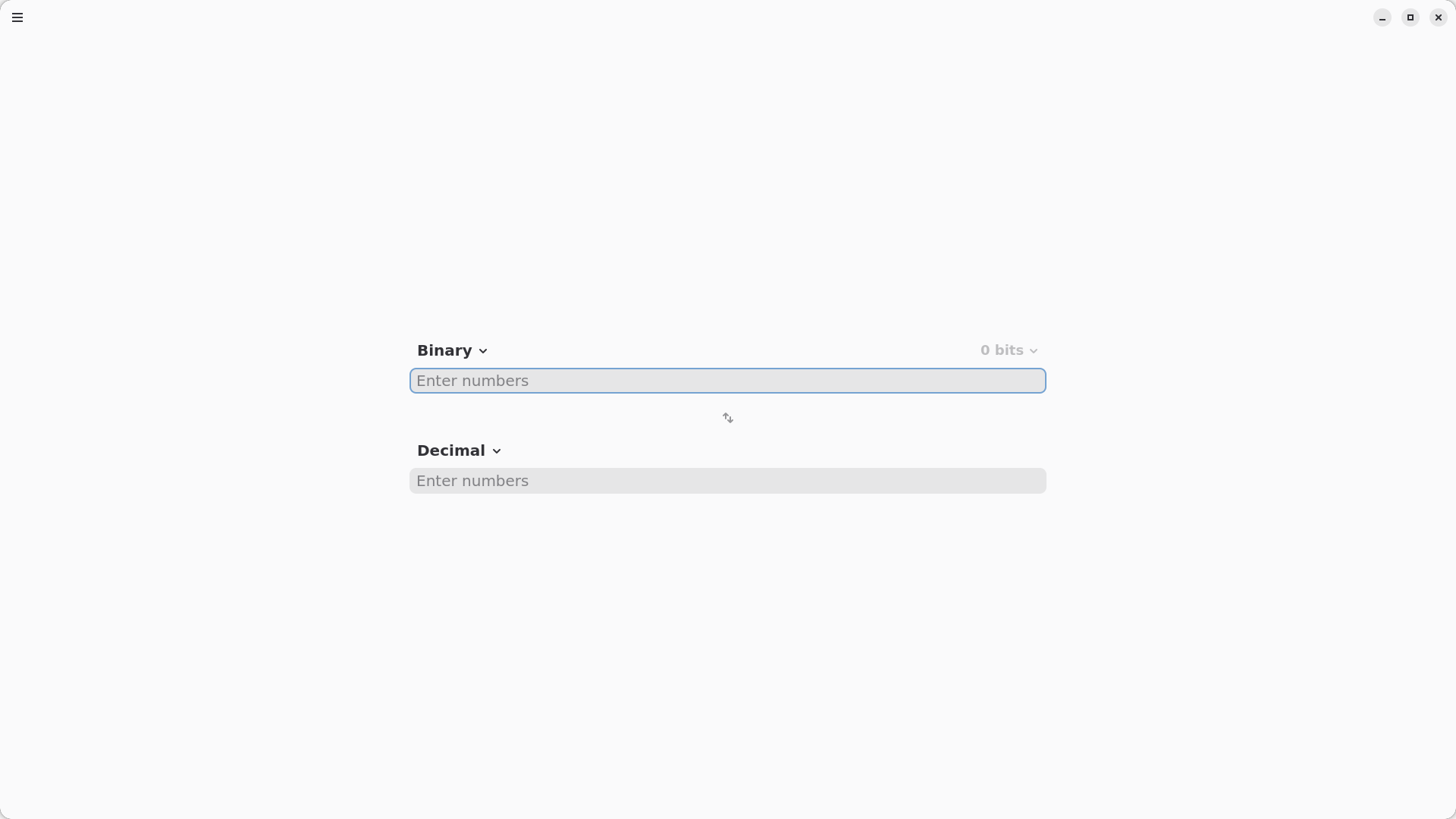

panel	Approved; gamescope listed a new panel window, and computer_state reported the same window ID and PID. The app rendered in that window (below)
launch	Approved; Keep Talking and Nobody Explodes (341800) started under Proton and computer_state reported it as the focused app
uninstall	Approved; app and locale removed
power	Rejected in the page. Unapproved retries, the same token used for uninstall, and a retry after rejection were all refused. Nothing was powered off
send_text	Approved, then refused because the Plasma desktop was not open (documented requirement)
keep_awake	status reports the script unavailable until PR #16 lands

A separate Claude Code CLI session, with only this server configured, read status, computer_state and a headset capture, and requested an install. It received an approval URL and did not execute anything.

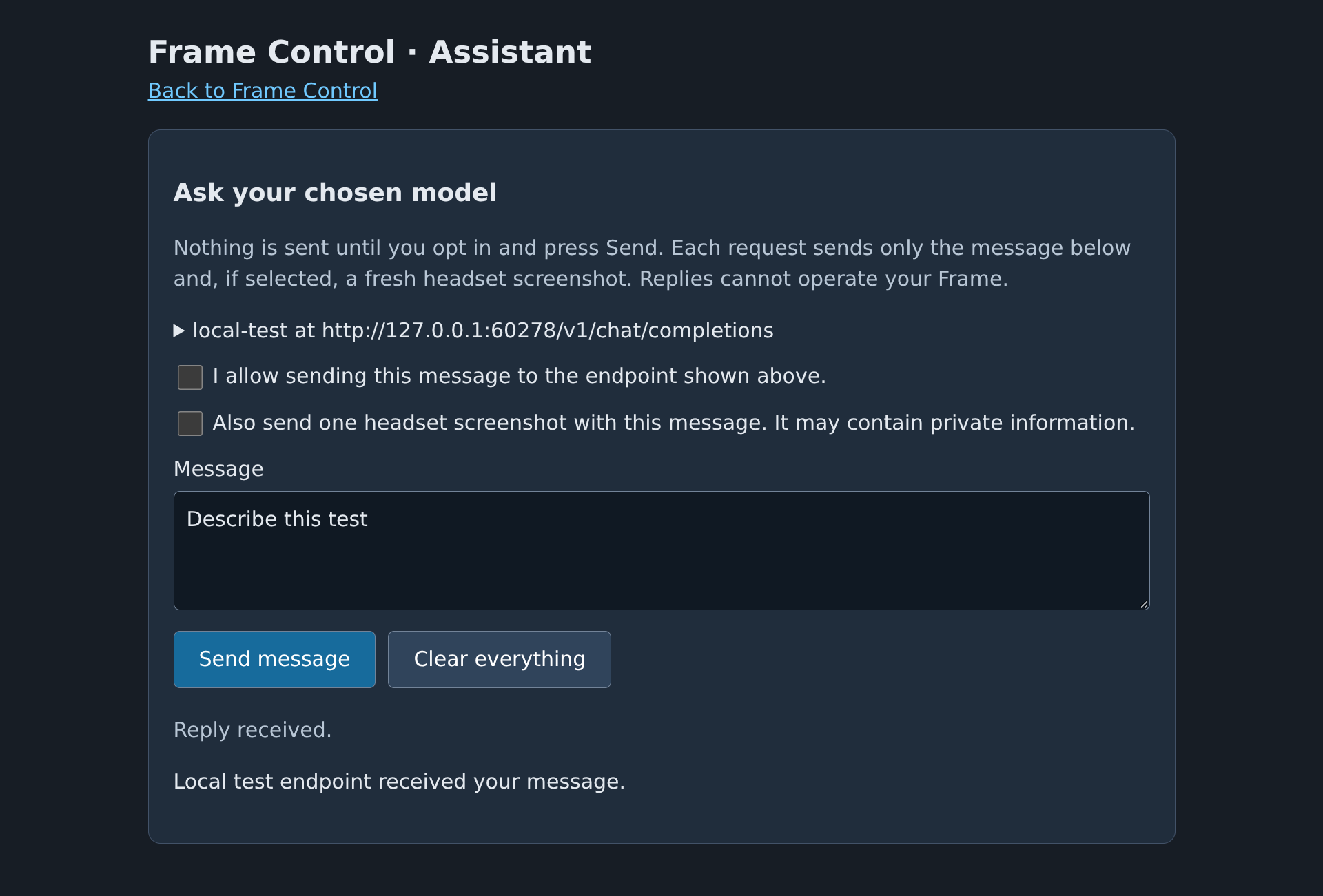

The assistant opened as a Frame panel through scripts/assistant-on-frame.py. Against a loopback stub model, a send without consent made zero requests. With consent it made exactly one, carrying the text and a fresh Frame screenshot. Consent unticked itself after sending. SIGTERM removed the panel, profile, log and tunnel.

Not verified while unworn: every headset capture was a uniform dark frame, so SteamVR's rendered view of panels and the game could not be checked; window captures (xwd) were used instead. MCP can launch a game or panel but has no tool to stop one: the tester stopped them over SSH. Removing an app leaves any runtime it pulled in; Flatpak may also remove related extensions when that runtime is removed by hand.

Computer-use coverage

MCP is the tool transport, not a limit on what an agent can do. A screenshot, accessibility snapshot, click or keystroke can all be MCP tools when we have a reliable underlying implementation. See the investigation for the verified boundaries. computer_state adds observation, not an input channel: it cannot click an approval button or send keyboard/mouse events.

Verified 2026-09-29, SteamOS 0.4.1, BUILD_ID 20260925.6191901: the command saved by codex mcp add launched without a prestarted server, negotiated MCP, listed 12 tools, read live Frame status and returned X11 window state plus AT-SPI observations. It exited 0 at EOF. Steam's accessibility tree had inaccessible children, reported as incomplete: true; this is not a complete actionable UI.
